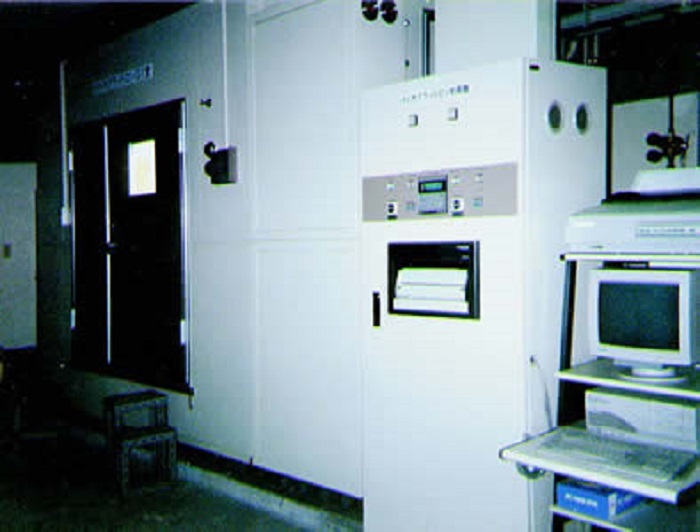

TGE

: Growth Chamber (Standard Type)

TGE is standard growth chamber which is assembled with insulation panels. Metal halide lamp for plant growth (Sunshine Ace) is used as light source, and it is possible to reproduce light environment which close to natural sun light. This chamber is preparable that customized size for installation space and multiple type.

LEARN MORE

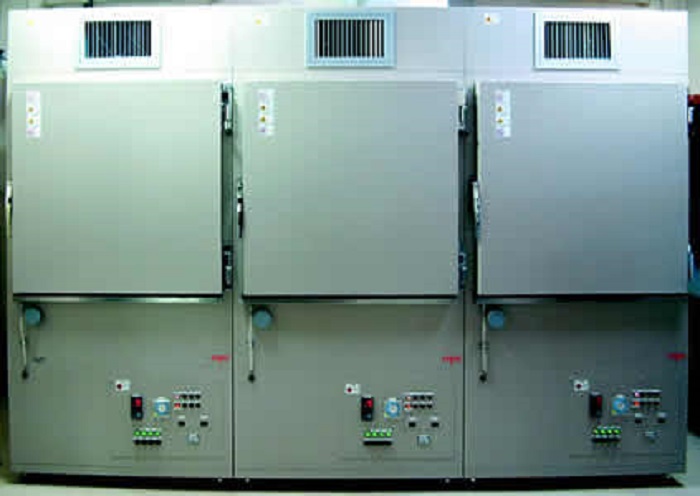

TGC

: Growth Chamber (Integrated Type)

TGC is factory made integrated type growth chamber, then user can use this chamber immediately after instroduction. Wind flow is made from floor in order to suppress the influence direct wind damage to plants. We can customize this cmaber according to users request, and user can select light source (i.e.fluorescent lamp (FL) and LEDs).

LEARN MORE

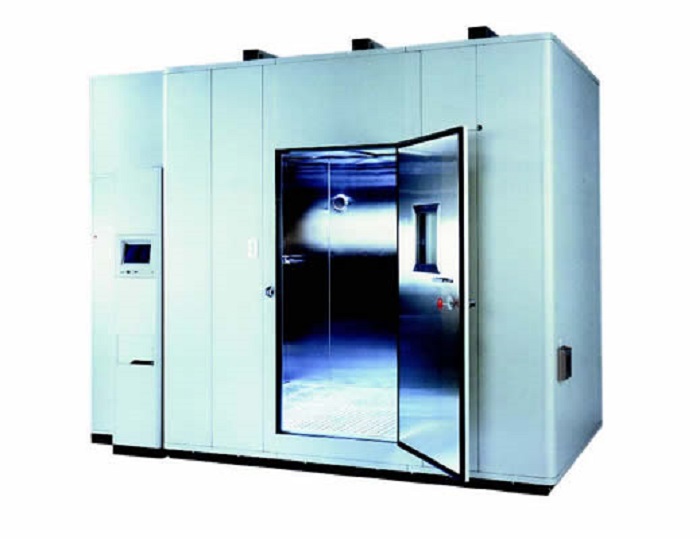

TGH

: Growth Chamber (Continuous Dimming Type)

TGH is a high performance growth chamber which can practice feedback control of light intensity in artificial light condition. Near-natural light condition is made by using metal halide lamp (Sunshine Ace) which is for plant growth. It is possible to make over 100,000 lux high light intensity, and to control 60-100% stepless continuous dimming. Furthermore user can examin different temperature, humidity, CO2 concentration and light intensity consitions. Each sensors, CO2 control system, and control panel (touch panel) is included as standard.

LEARN MORE

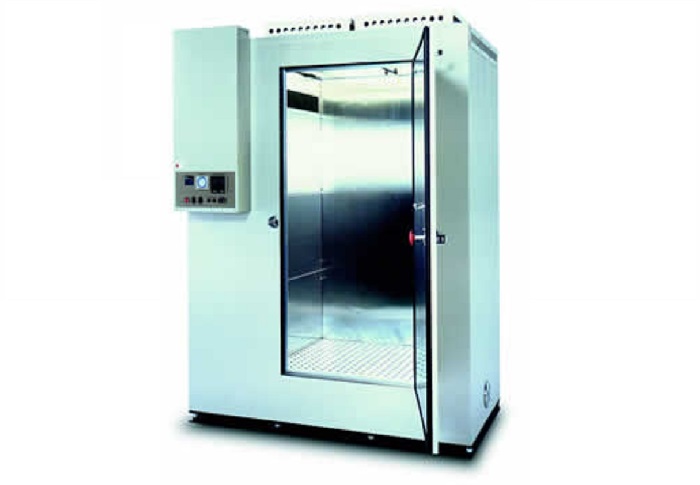

TGL

: Growth Chamber (Space Saving Type)

TGL is small scale growth chamber which is assembled with insulate panel on 1 square meters of floor space. Three wavelength twin fluorescent lamp is installed as standard light source. We have two models of TGL (i.e. 30,000 and 50,000 lux per square meters). It is reproduced optimal breeze environment by the air flow from entire floor. We have some optional products like cultivation shelves.

LEARN MORE

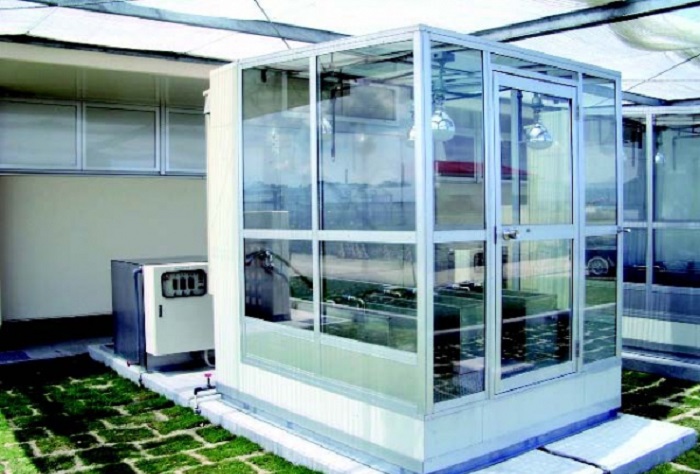

TPE

: Phytotron (Standard Type)

TPE is standard type Phytotron which is used Agri-grass to save egergy and to make the ideal environment for plants. We can customize this system such as independent type and connection type, and we have some opptional products (i.e. supplemental light, cultivation system, photoperiod treatment system etc.). Optimal breeze environment is reproduced by the air flow from entire floor.

LEARN MORE

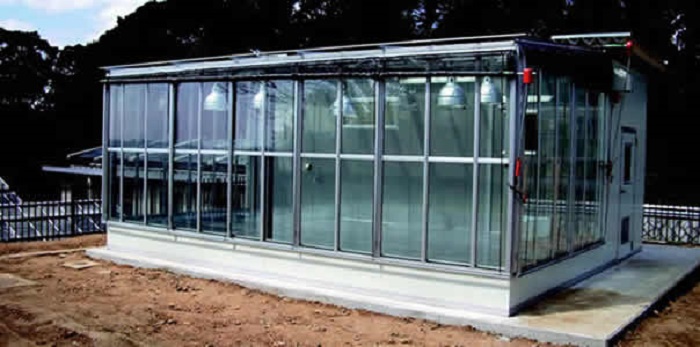

TPEB

: Phytotron (Biohazard compliant Type)

TPEB is closed type Phytotron that biohazard (genetic modified) compliant (P1P level). In order to save energy and make the ideal environment for plants, pair Agri-glass is used. Effluent treatment system is equipped as standard equipment. Optimal breeze environment is reproduced by the air flow from entire floor.

LEARN MORE

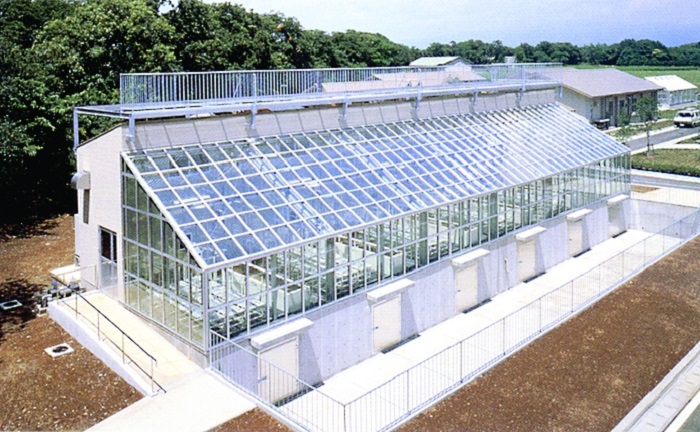

TPH

: Phytotron (Special measures Type)

TPH customized type Phytotron can be designed from single type to building establishment type according to users request. It is prepared closed type and non-closed type of biohazard compliant (from P1P to P2P level), and we have some opptional products (i.e. supplemental light, cultivation system, photoperiod treatment system etc.). Similar with TPE, TPH is used Agri-grass to save egergy and to make the ideal environment for plants. And also, user can select air conditioning system.

LEARN MORE
